401AJR Transom Assembly Instructions Pre 2013

1) Pre-Assemble all 6- bolt, washer and bushing Assemblies 1 bolt-washer-shim assembly.jpg (18353 bytes)
2) Place Transom forward of black motor mounts. the flat transom plate should face aft and transom pad with loop should face forward.  2 Transom placement.jpg (31429 bytes)

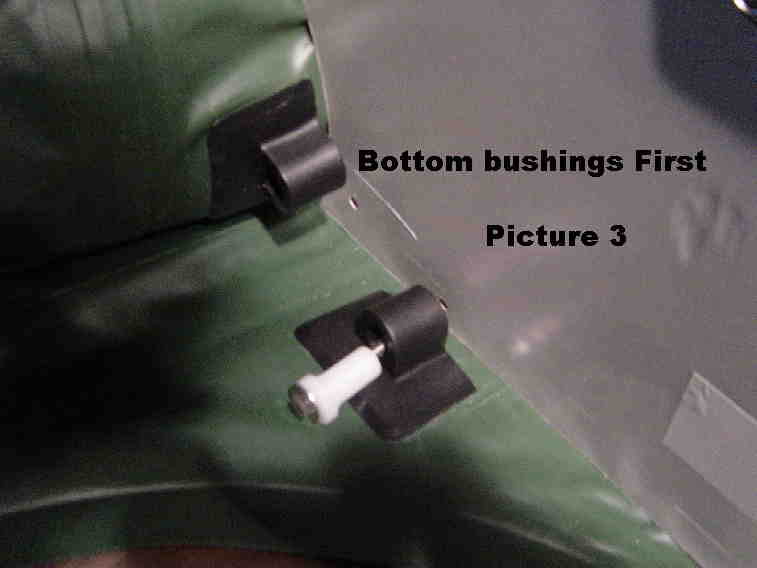

3) Install first pair of bolt bushing assemblies into floor  motor mounts first.  3 bottom bushings first.jpg (20331 bytes)

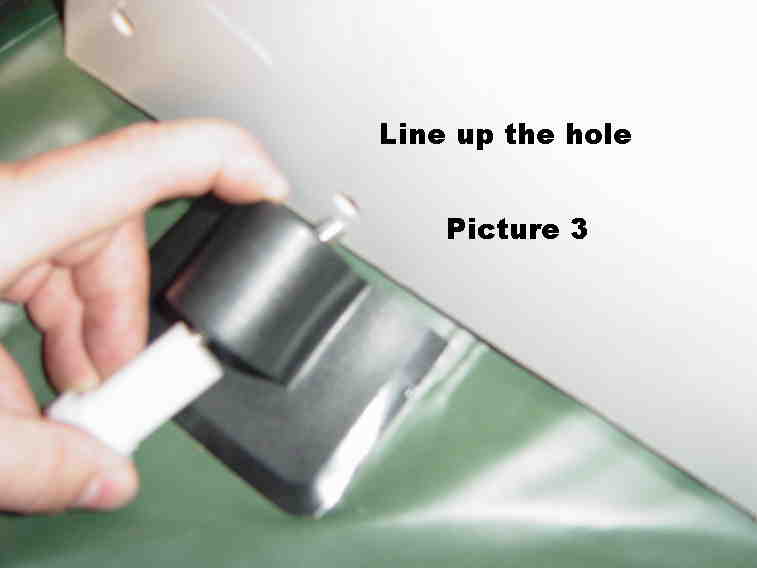

4) Align bolts with the holes in transom while sliding bushing into black motor mount. This should be done with no air in the floor so transom holes align easily.  4 Line up hole.jpg (19872 bytes)

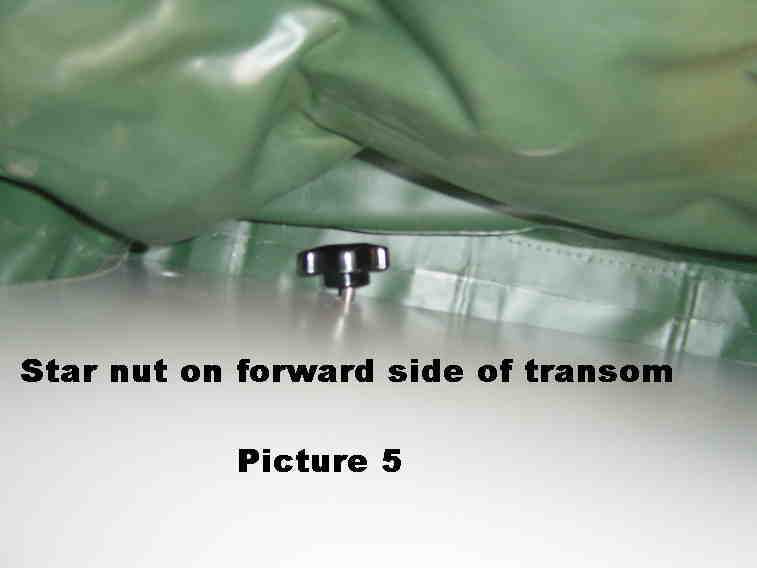

5) Screw the black plastic star nut on to the bolt the extends on the forward side of transom. Finger tight is ok for now. Then inflate floor air chamber.  5 Star nut.jpg (21343 bytes)

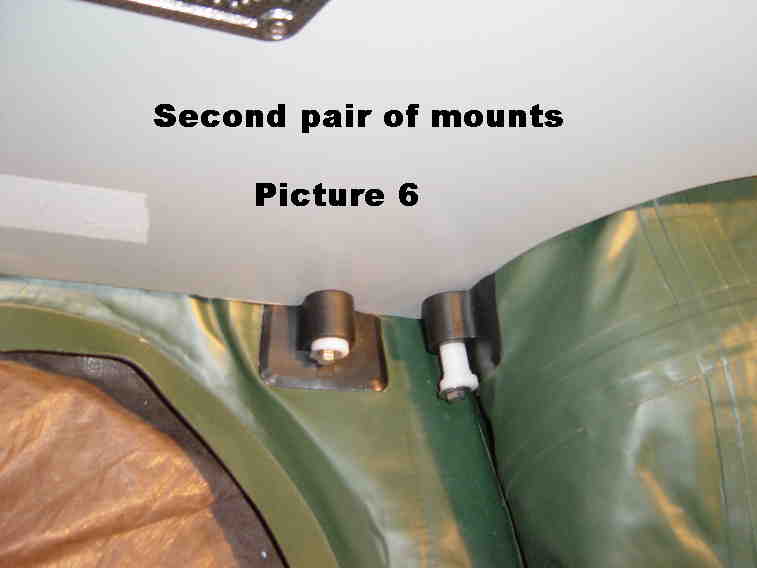

Align and install the next two bolt-bushing assemblies closest to the floor and attach star nut finger tight.   6 second pair of mounts.jpg (23585 bytes)

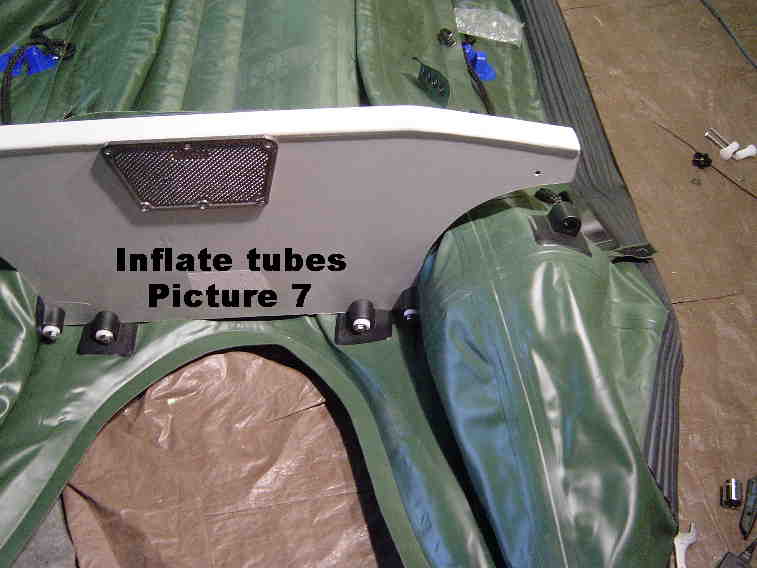

With the bottom 4 motor mounts installed inflate both port and starboard  air chambers enough to take shape.  7 Inflate Tubes.jpg (35105 bytes)

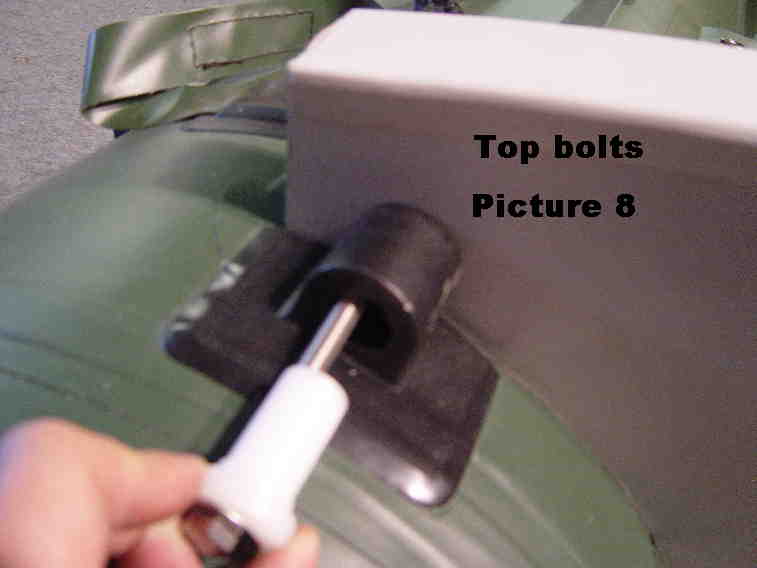

Align and install the last 2 bolt-bushing assemblies into top motor mounts and transom. Attach star nuts and use a wrench to tighten all 6 motor mount bolts and star nuts tight until the head of the white bushing is pressed firmly against black motor mount bracket.   8 Top Bolts.jpg (21014 bytes)

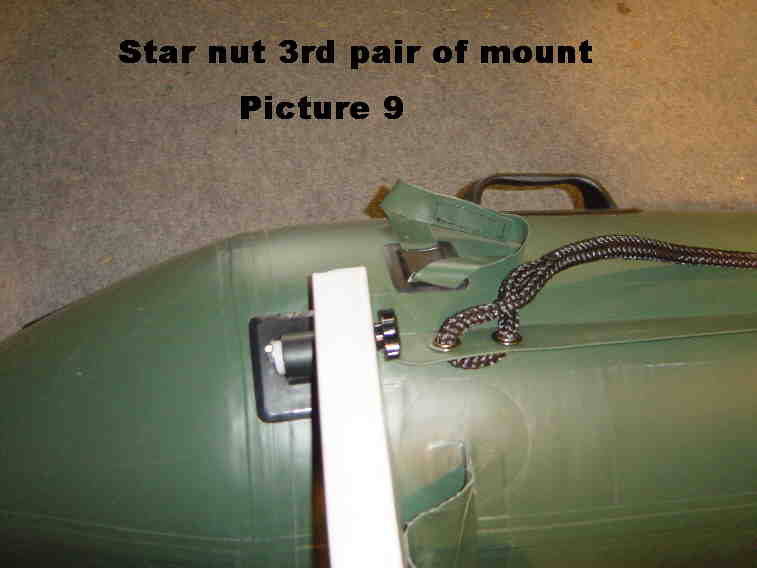

Finish inflating entire boat to 4 PSI. Finishing installing oars and accessories on the rest of the boat.  Take note the water drain on the aft air chamber just forward of the transom also looks like an inflation valve.  9 star nub last mounts.jpg (25069 bytes)
